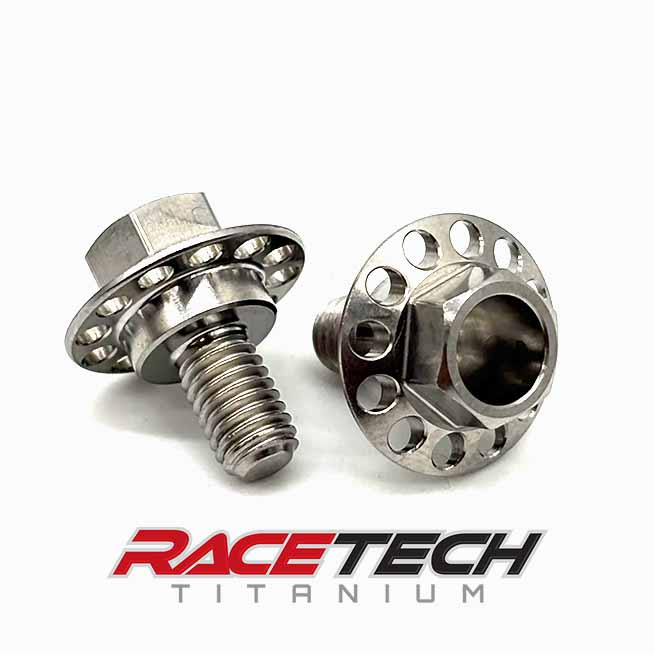

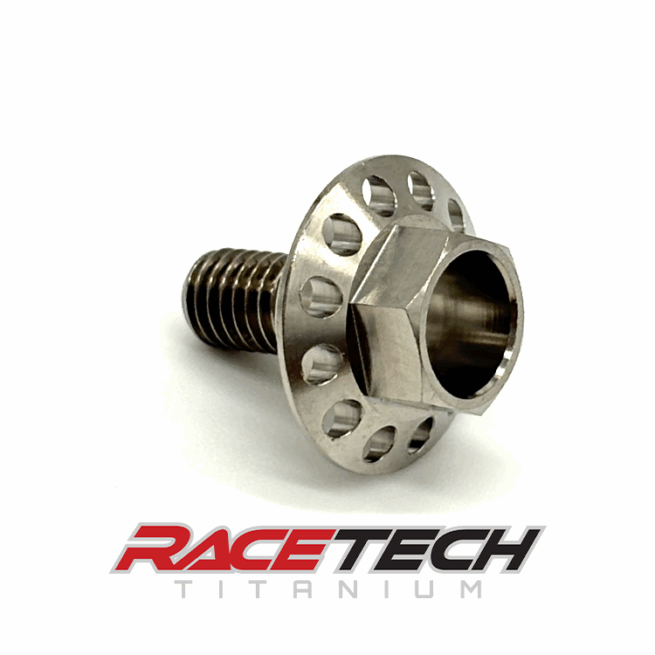

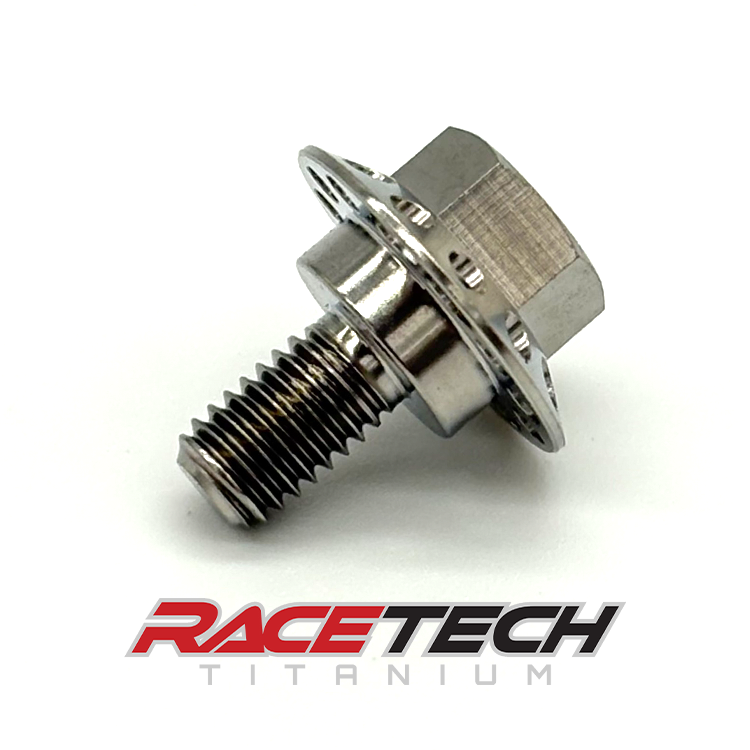

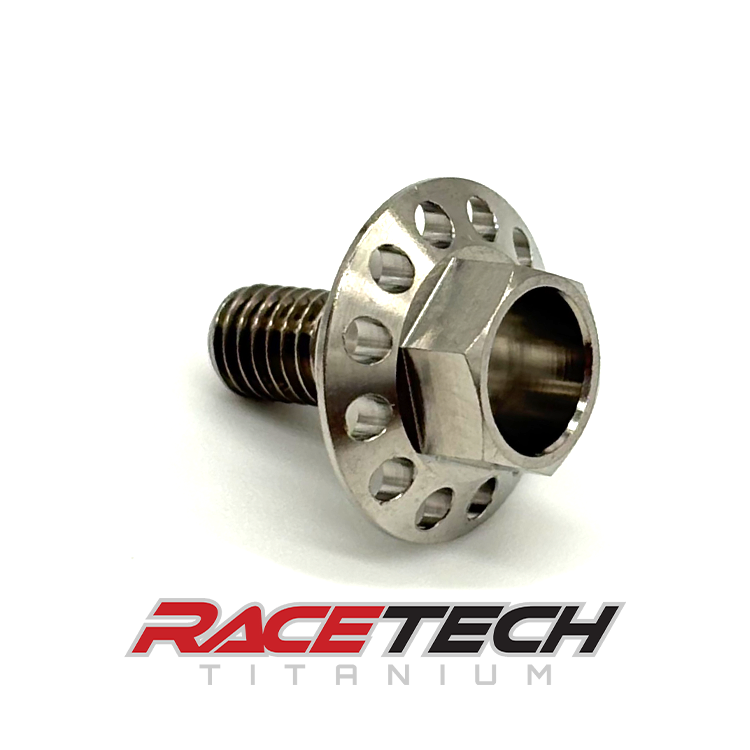

Titanium M5x0.8×11 Hex Head Flange Bolt (8.9×2.7 Shoulder) Drilled
$14.90
93 In Stock
Description
Titanium M5x0.8×11 Hex Head Flange Bolt (8.9×2.7 Shoulder) Drilled
– Aerospace Grade Titanium
– CNC Machined
– Heat Treated
– Rolled Threads
Hex Size – 8mm
Flange Diameter – 15mm
Flange Height – 2mm
Shoulder Diameter- 8.9mm
Shoulder Height – 2.7mm
Thread Size – M5x0.8
Thread Length – 8.25mm
Includes:
(1) Titanium M5x0.8×11 Hex Head Flange Bolt (8.9×2.7 Shoulder) Drilled
Additional information
| Weight | 2 oz |
|---|---|
| Dimensions | 1 × 1 × 1 in |
| Bolt Type | Shoulder Bolt |
| Size (Metric) | |
| Thread Pitch | 0.8 |
| Length (Metric) | 11mm |
