Titanium M6x1.0x14 Flat Head Bolt (9.4×5.35 Shoulder)
$9.24
Temporarily Out of Stock - Call for Availability
Description

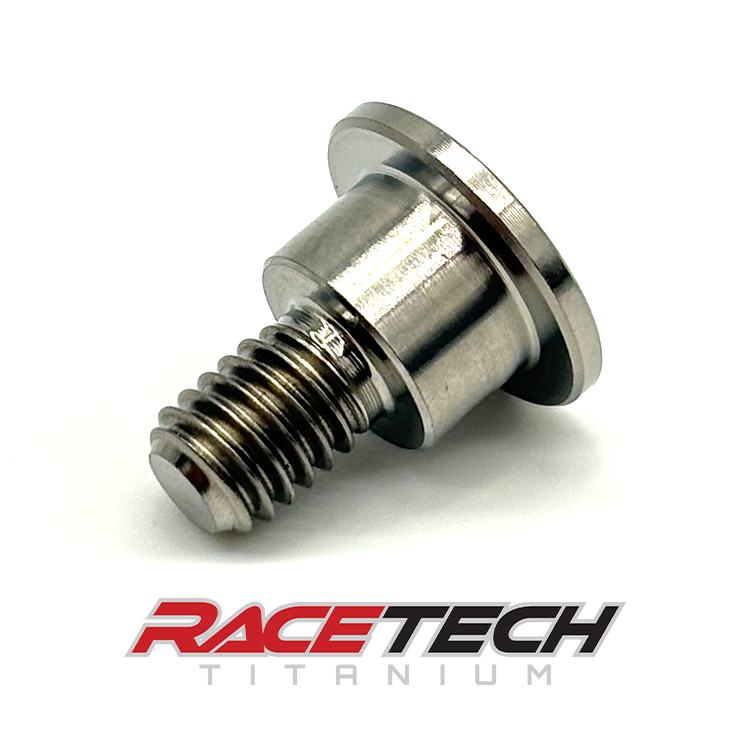

Titanium M6x1.0x14 Flat Head Bolt (9.4×5.35 Shoulder)
Reduce Weight (Titanium is 45% lighter than the stock steel parts)
Corrosion Resistant
Hex Size – 5mm
Flange Diameter – 14mm
Flange Height – 1.55mm
Shoulder Diameter- 9.4mm
Shoulder Height – 5.35mm
Thread Size – M6x1.0
Thread Length – 8mm
– 6Al-4v Titanium
– CNC Machined
– Heat Treated
– Rolled Threads
Includes:
(1) Titanium M6x1.0x14 Flat Head Bolt (9.4×5.35 Shoulder)
Additional information
| Weight | .5 oz |
|---|---|
| Dimensions | 1 × .24 × .24 in |
| Fastener Type | Titanium Bolt |
| Bolt Type | Shoulder Bolt |
| Size (Metric) | |
| Length (Metric) | 14mm |
| Thread Pitch | 1.0 |
