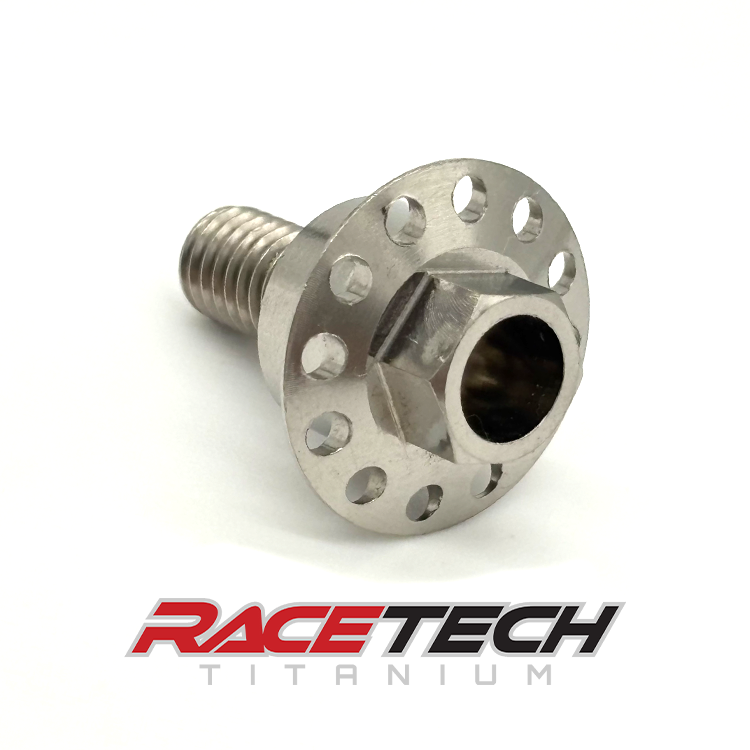

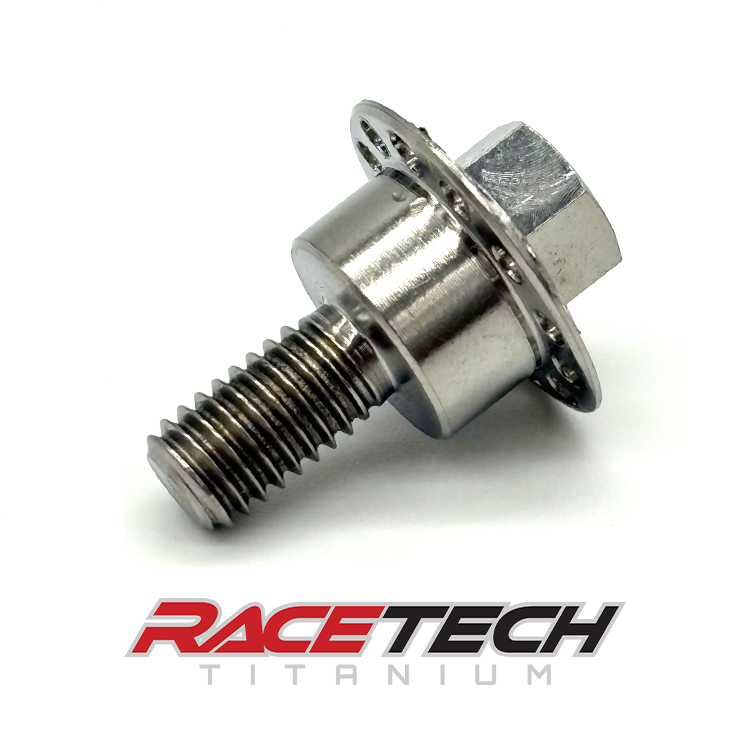

Titanium M6x1.0x17 Hex Head Flange Bolt (11.6×6.15 Shoulder) Dimpled
$16.23
123 In Stock
Description
Titanium M6x1.0x17 Hex Head Flange Bolt (11.6×6.15 Shoulder) Dimpled
Hex Size – 8mm
Flange Diameter – 17.8mm
Flange Height – 1.5mm
Shoulder Diameter- 11.6mm
Shoulder Height – 6.15mm
Thread Size – M6x1.0
Thread Length – 10.9mm
– Reduce Weight (Titanium is 45% lighter than the stock steel parts)
– Corrosion Resistant
– 6Al-4v Titanium
– CNC Machined
– Rolled Threads
Includes:
(1) Titanium M6x1.0x17 Hex Head Flange Bolt (11.6×6.15 Shoulder) Dimpled
Additional information
| Weight | 2 oz |
|---|---|
| Dimensions | 1 × 1 × 1 in |
| Bolt Type | Shoulder Bolt |
| Size (Metric) | |
| Thread Pitch | 1.0 |
| Length (Metric) | 17mm |
