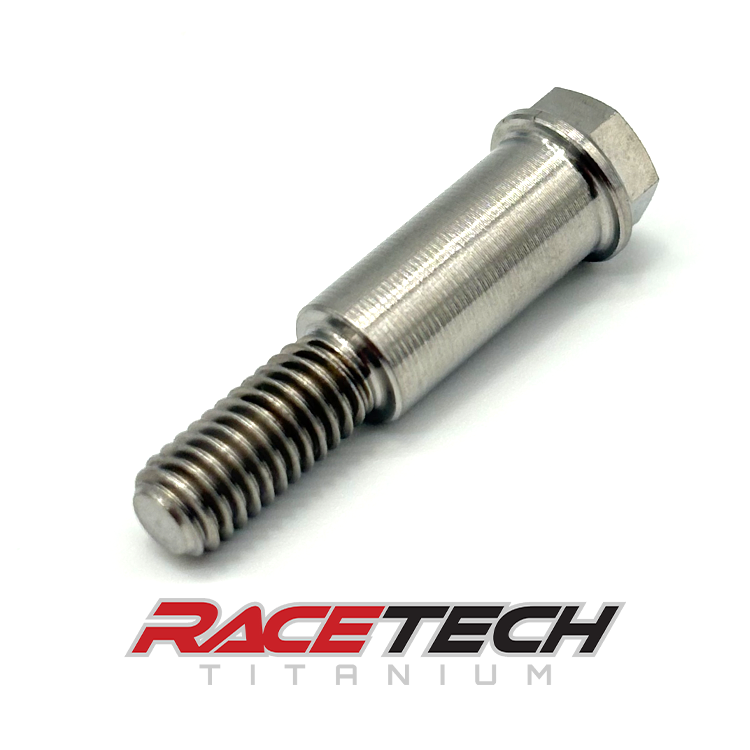

Titanium M6x1.0x31 Hex Head Flange Bolt (7.9×17 Shoulder)
$17.69
29 In Stock
Description
Titanium M6x1.0x31 Hex Head Flange Bolt (7.9×17 Shoulder)
Hex Size – 8mm
Flange Diameter – 10mm
Flange Height – 1.25mm
Shoulder Diameter- 7.9mm
Shoulder Height – 17mm
Thread Size – M6x1.0
Thread Length – 14mm
– Aerospace Grade Titanium
– CNC Machined
– Heat Treated
– Rolled Threads
Includes:
(1) Titanium M6x1.0x31 Hex Head Flange Bolt (7.9×17 Shoulder)
Additional information
| Weight | 5 oz |
|---|---|
| Dimensions | 2 × 1 × .24 in |
| Bolt Type | Shoulder Bolt |
| Size (Metric) | |
| Thread Pitch | 1.0 |
| Length (Metric) | 31mm |
