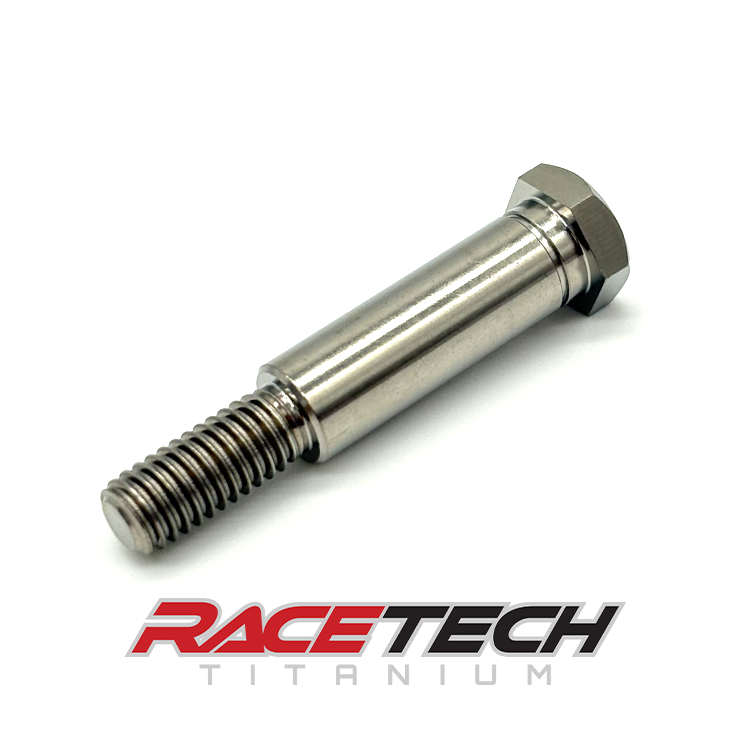

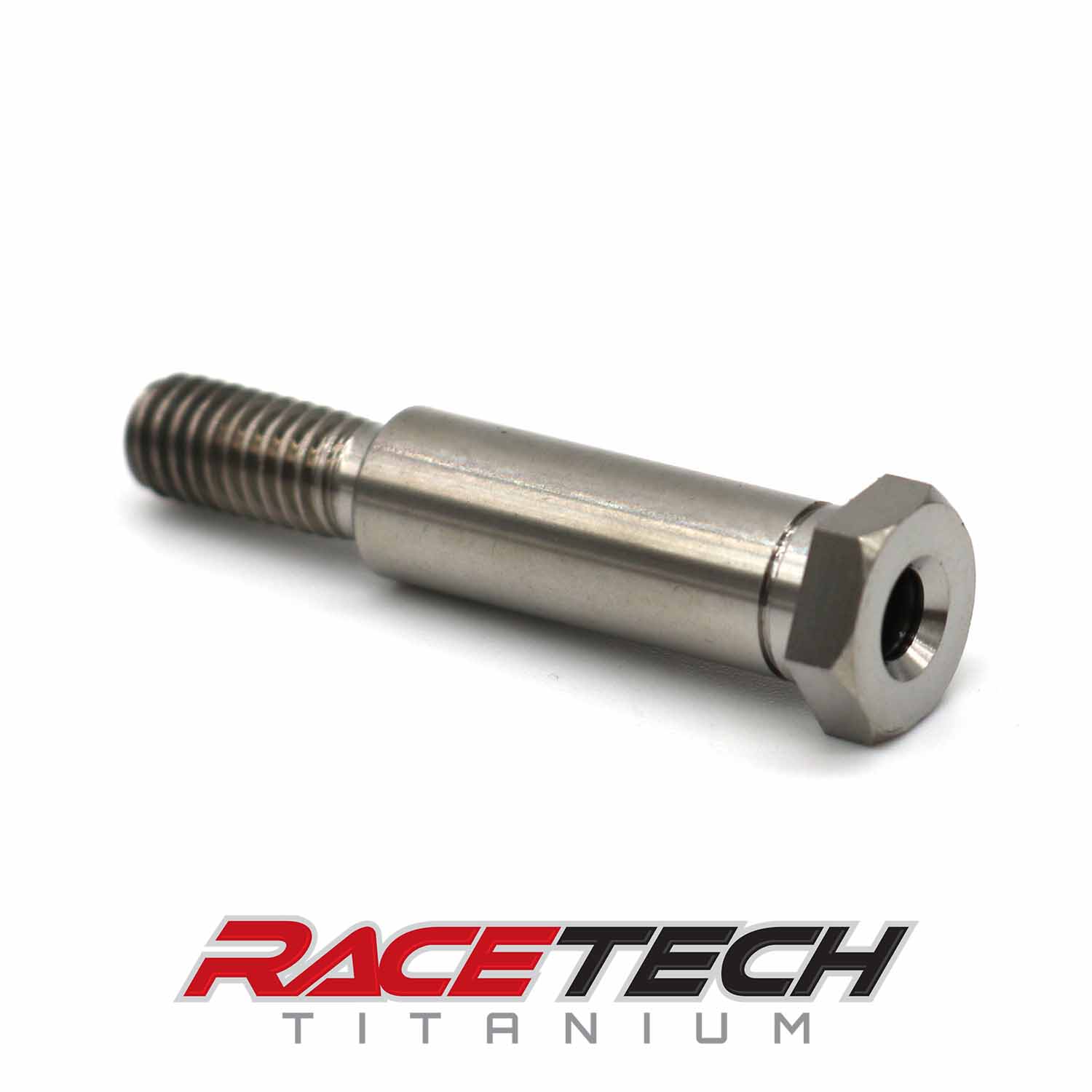

Titanium M6x1.0x38 Hex Head Flange Bolt (7.9×23.85 Shoulder)
$16.89
233 In Stock
Description
Titanium M6x1.0x38 Hex Head Flange Bolt (7.9×23.85 Shoulder)
Hex Size – 10mm
Flange Diameter – 10mm
Flange Height – 3mm
Shoulder Diameter- 7.9mm
Shoulder Height – 23.85mm
Thread Size – M6x1.0
Thread Length – 14mm
– Reduce Weight (Titanium is 45% lighter than the stock steel parts)
– Corrosion Resistant
– 6Al-4v Titanium
– CNC Machined
– Heat Treated
– Rolled Threads
Includes:
(1) Titanium M6x1.0x38 Hex Head Flange Bolt (7.9×23.85 Shoulder)
Additional information
| Weight | 2 oz |
|---|---|
| Dimensions | 2 × 1 × 1 in |
| Bolt Type | Shoulder Bolt |
| Size (Metric) | |
| Thread Pitch | 1.0 |
| Length (Metric) | 38mm |
