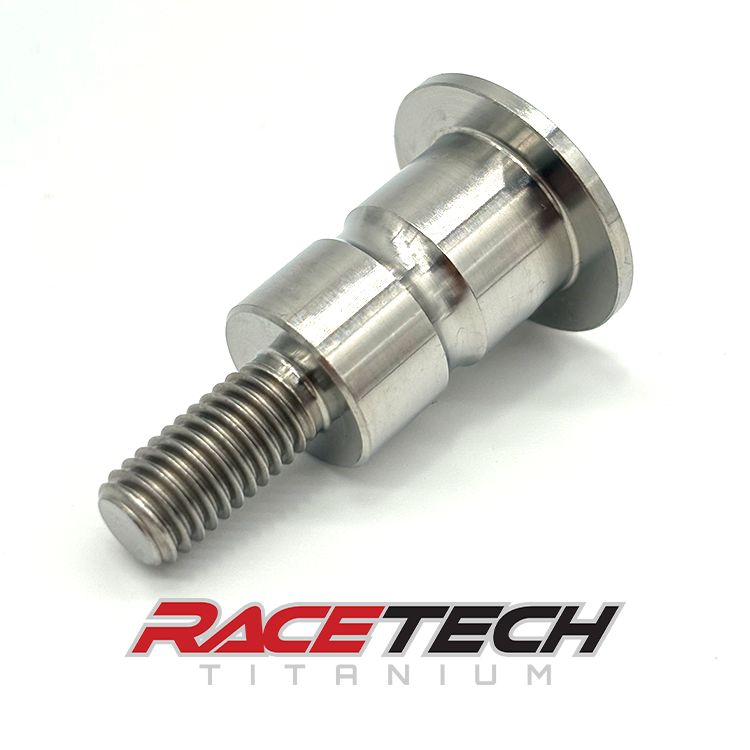

Titanium M8x1.25×16.25 Flat Head Bolt (15×23 Shoulder) Dimpled
$37.01
67 In Stock
Description
Titanium M8x1.25×16.25 Flat Head Bolt (15×23 Shoulder) Dimpled
Reduce Weight (Titanium is 45% lighter than the stock steel parts)
Corrosion Resistant
Hex Size – 8mm
Flange Diameter – 23.35mm
Flange Height – 1.75mm
Shoulder Diameter- 15mm
Shoulder Height – 23mm
Thread Size – M8x1.25
Thread Length – 16.25mm
– 6Al-4v Titanium
– CNC Machined
– Heat Treated
– Rolled Threads
Includes:
(1) Titanium M8x1.25×16.25 Flat Head Bolt (15×23 Shoulder) Dimpled
Additional information
| Weight | 5 oz |
|---|---|
| Dimensions | 3 × 2 × 1 in |
| Bolt Type | Shoulder Bolt |
| Size (Metric) | |
| Length (Metric) | 39mm |
| Thread Pitch | 1.25 |
