Titanium M8x1.25×21 Dome Head Bolt
$10.05
Temporarily Out of Stock – Place Order to Backorder and Will Ship When Available
Description

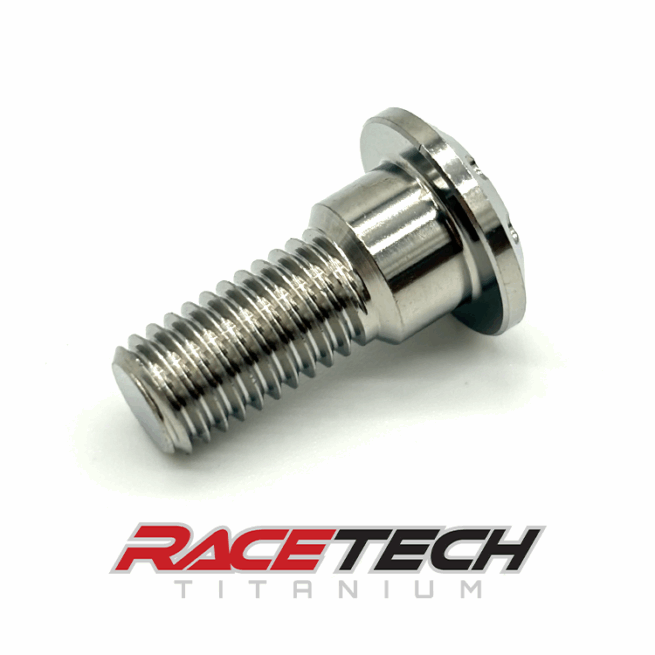

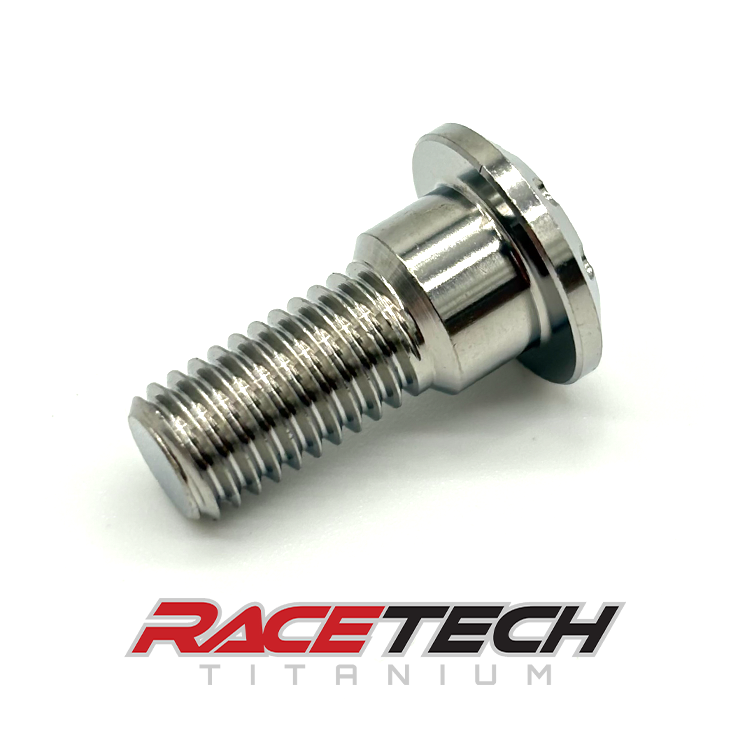

Titanium M8x1.25×21 Dome Head Bolt
Torx Size – T40
Flange Diameter – 15.5mm
Flange Height – 3mm
Shoulder Diameter- 10mm
Shoulder Length – 6mm
Thread Size -M8x1.25
Thread Length – 15mm
– Reduce Weight (Titanium is 45% lighter than the stock steel parts)
– Corrosion Resistant
– 6Al-4v Titanium
– CNC Machined
– Rolled Threads
Includes:
(1) Titanium M8x1.25×21 Dome Head Bolt
Additional information
| Weight | .25 oz |
|---|---|
| Dimensions | 1 × .24 × .24 in |
| Bolt Type | Button Head, Shoulder Bolt |
| Length (Metric) | 21mm |
| Metric or Standard | Metric |
| Size (Metric) | |
| Thread Pitch | 1.25 |
| Fastener Type | Titanium Bolt |
