Titanium M8x1.25×49.15 Flat Head Bolt (14.9×28.2 Shoulder) Dimpled
$39.63
67 In Stock
Description

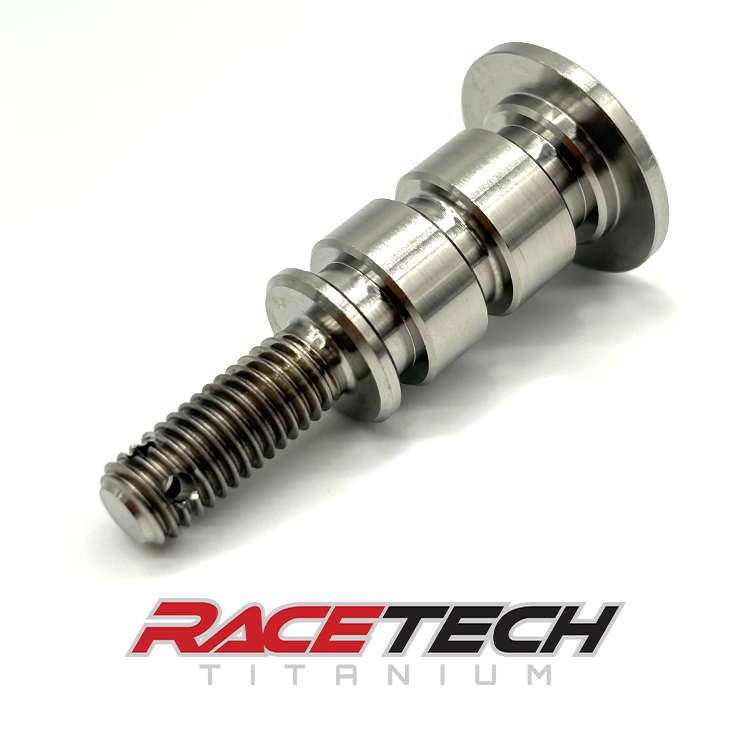

Titanium M8x1.25×49.15 Flat Head Bolt (14.9×28.2 Shoulder) Dimpled
Reduce Weight (Titanium is 45% lighter than the stock steel parts)
Corrosion Resistant
Hex Size – 6mm
Flange Diameter – 23mm
Flange Height – 2.1mm
Shoulder Diameter- 14.9mm
Shoulder Height – 28.2mm
Thread Size – M8x1.25
Thread Length – 21mm
– 6Al-4v Titanium
– CNC Machined
– Heat Treated
– Rolled Threads
Includes:
(1) Titanium M8x1.25×49.15 Flat Head Bolt (14.9×28.2 Shoulder) Dimpled
Additional information
| Weight | 5 oz |
|---|---|
| Dimensions | 3 × 2 × 1 in |
| Bolt Type | Shoulder Bolt |
| Size (Metric) | |
| Length (Metric) | 48.5mm |
| Thread Pitch | 1.25 |
